SWR DRAINAGE SYSTEM

Soil, Waste & Rain Water (S.W.R.) uPVC Drainage Systems are the ideal solution for drainage & sewerage applications, owing to its superior properties compared to conventional drainage systems.

The pipes are available in 2 ranges namely Permafit & Classic and in diameters ranging from 40mm to 200mm & conforms to relevant IS & international specifications.

Kisan SWR uPVC Drainage Systems are a set of pipes and fittings used in excreta lines of Residential and Commercial complexes. Type B pipes are specifically used for Hi-Rise Buildings. The general applications of these pipes are:

Soil / Waste

Lines are connected to various excreta generation points such as Lavatories (Basins, Commodes etc.) and kitchens (sinks etc.) for smooth transportation of soluble and in soluble waste along with water to main drain lines.
Rain

Lines connected to Gulleys, Gutters on Roof tops for drainage of excess rain water.

Lightweight

Convenient and cost effective as transportation & handling is easy.
Flexibility in usage

Possible due to option of joining either by Rubber Ring or with Solvent Cement.
High Flow Rate

Excellent flow properties made possible due to the smooth internal surface that remains constant throughout it’s life.
Weather Resistant

Excellent outdoor weathering performance due to specially blended UV stabilised compound.
Aesthetic Superiority

Far superior when compared to conventional CI and AC systems.
Performance

Trouble-free functioning saves on inspection & maintenance costs. A combination of lightness, flexibility & use of pre-fabrication results in substantial savings in time and money.
High Impact Strength

Not prone to mechanical damages due to handling and transportation.
Chemical Resistance

Unaffected by a wide range of chemicals & safe from attacks by galvanic or electrolytic action.
Non-Flammable

Self-extinguishing as it does not support combustion.
Corrosion Resistant

Constant contact with water does not deteriorate the material.
Rodent Repellent

Special treatment at compounding stage ensures that the product is immune to rodent attacks.

Description			Type A	Type B
Single Socketed	3 Mtrs (L)	10 Ft.	40, 50, 63, 75, 90, 110, 160 & 200 mm	40, 50, 63, 75, 90, 110, 160 & 200 mm
Double Socketed	3 Mtrs (L)	10 Ft.	40, 50, 63, 75, 90, 110, 160 & 200 mm	40, 50, 63, 75, 90, 110, 160 & 200 mm
Single Socketed	2 Mtrs (L)	6 Ft.	40, 50, 63, 75, 90, 110, 160 & 200 mm	40, 50, 63, 75, 90, 110, 160 & 200 mm
Double Socketed	2 Mtrs (L)	6 Ft.	40, 50, 63, 75, 90, 110, 160 & 200 mm	40, 50, 63, 75, 90, 110, 160 & 200 mm
Double Socketed	1 Mtrs (L)	3 Ft.	40, 50, 63, 75, 90, 110, 160 & 200 mm	40, 50, 63, 75, 90, 110, 160 & 200 mm
Rubber Ring	--	--	40, 50, 63, 75, 90, 110, 160 & 200 mm	40, 50, 63, 75, 90, 110, 160 & 200 mm

SWR Fittings

Kisan has the widest range in SWR Fittings. The SWR Fittings are available in 3 ranges namely Permafit, Classic & Asiad.

Fittings are of 3 types based on their installation method namely Cement Type, Rubber Ring Type & Co-moulded Ring Type. Reducer, Vent Cowl & Pipe Clip are available only as Cement Type. Fittings are available in foll. sizes: 40, 50, 63, 75, 90, 110 & 160 mm. Reducer is available in only 2 sizes: 110 x 75 mm & 160 x 110 mm.

D	L	H
75 mm	114.00	89.00
110 mm	135.00	127.00
160 mm	176.00	179.00

D	H	B	L
75 mm	190	90	112
110 mm	262	127	153

D	H	A	L
75 mm	158	90	116
110 mm	212	127	168

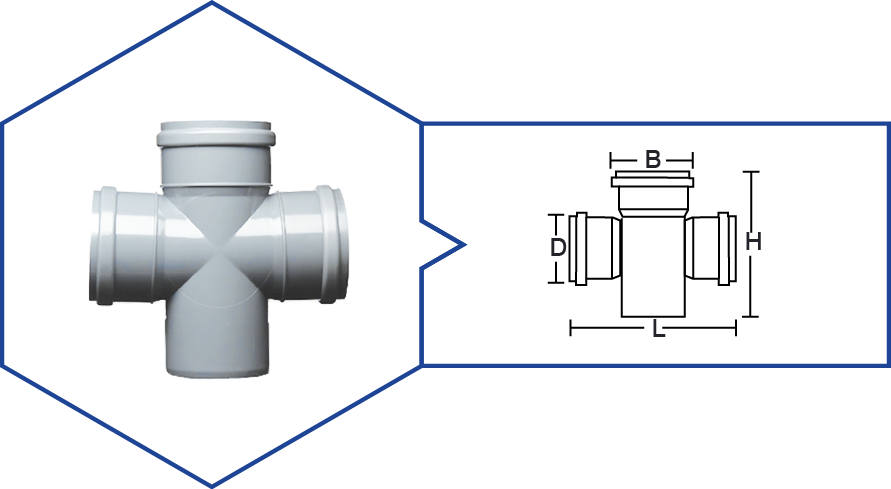

D	H	B	L
75 mm	90	170	213
110 mm	126	242	300

D	H	L	B
75 mm	190	193	90
110 mm	262	262	126
160 mm	181	260	280

D	A	L	H
75 mm	90	200	215
110 mm	127	280	300

D	A	L	H
75 mm	90	135	190
110 mm	127	186	262
160 mm	179	270	360

D	A	L	H	C
75 mm	90	166	147	80
110 mm	126	220	205	112.6
160 mm	181	280	290	112.6

D	L	H
50 mm	54	55
63 mm	69	100
75 mm	81.5	107
110 mm	116	130

D	H	L
50 mm	70	95
63 mm	81	103
75 mm	110	113
90 mm	120	130
110 mm	150	152
160 mm	196	215

D	L	H
50 mm	54	55
63 mm	69	100
75 mm	81.5	107
110 mm	116	130

D	C	L	H
75 mm	90	167	190
110 mm	127	228	262
160 mm	179	301	360

Size	L	A	C	H1
110 x 75	154.5	52.5	102	90

D	B	L	H
75 mm	90	262	216
110 mm	126	369	302

D	L	H
50 mm	57	29
75 mm	95	49
110 mm	130	59

D	A	L	H
75 mm	90	262	216
110 mm	126	369	302

D	A	L	H
75 mm	90	200	190
110 mm	127	262	262

Size	L	A	B
125 X 110 mm	142	125	110

L	H
450	122
(18”)

L	H
193	198

Joining instructions for Rubber Ring Type

1. Cut the pipe square to the required length.

2. Chamfer the edge of the pipe, remove all burs, dust and dirt.

3. Apply Kisan lubricant on the external surface of the chamfered end of the pipe and on the rubber gasket. Fit the rubber ring into the groove.

4. Check ring seal to ensure it is in position in the housing.

Installation on Walls / Concrete

Mark layout line on wall and fix the pipeline accordingly. Apply a thing coat of PVC solvent cement followed by a light sprinkle of dry sand in slots without a cement base, before inserting pipes and fittings. Allow it to dry. Repeat process.

Clipping Distance

Size in mm	40	50	75	110	160
Horizontal (in ft.)	0.4	0.5	0.75	1.1	1.6
Vertical (in ft.)	1.2	1.5	2.00	2.00	2.00

Traps

Traps are essential for efficient functioning of drainage systems. For domestic systems, the trap is a depressed fitting to the sanitary fitting and remains full of water. Technically they are termed as water seals. The function of a trap is to prevent the seepage of bad odors / gases inside the room and at the same time to allow the sewage to flow through it. The effectiveness of the trap depends upon the depth of seal. Municipal Corporation and ISI specify the depth of the seals as minimum 50 mm.

Different types of Traps

The floor trap is provided at the points of entry of waste water into the house. It is thus placed in bathrooms, kitchens, sinks etc. It is a starting point for waste water drainage. A cover (jali) is provided on the trap to prevent entry of solid matter.

A	C	L	H
110	198	410	265
125	198	410	265

A	C	L	H
110	195	442	245
125	195	455	246

A	C	L	H
110	196	430	275
125	196	432	275

H	L	D	A
147	150	75	50

D	H	L	A
75	83	260	131

D	H	L	A
75	83	260	131

Installation

Determine correct location of 'P' / 'Q' / 'S' Traps and set it on a firm base located relative to the floor finish by pouring concrete on slab.
Bedding can be carried out by pouring concrete around 'P'/ 'Q'/ 'S' Trap, ensuring that outlet of Trap is left clear of concrete.
Place WC connector ring to the socketed end of 125 / 110 'P' / 'Q' / 'S' Trap.
Apply rubber lubricant on WC connector ring as well as on outer side of IWC pan and now complete the joint by pushing IWC pan to home of 125 mm socket of 'P' / 'Q'/ 'S' Trap.
When 110/110mm 'P'/ ‘Q'/'S' Traps are used for jointing other than IWC pan connection, the joints are to be completed with the help of solvent cement.
The outlet of 110 mm can be inserted in the socket end of pipe / fittings (as the case may be) and joint can be solvent cemented to make leakproof joint.
